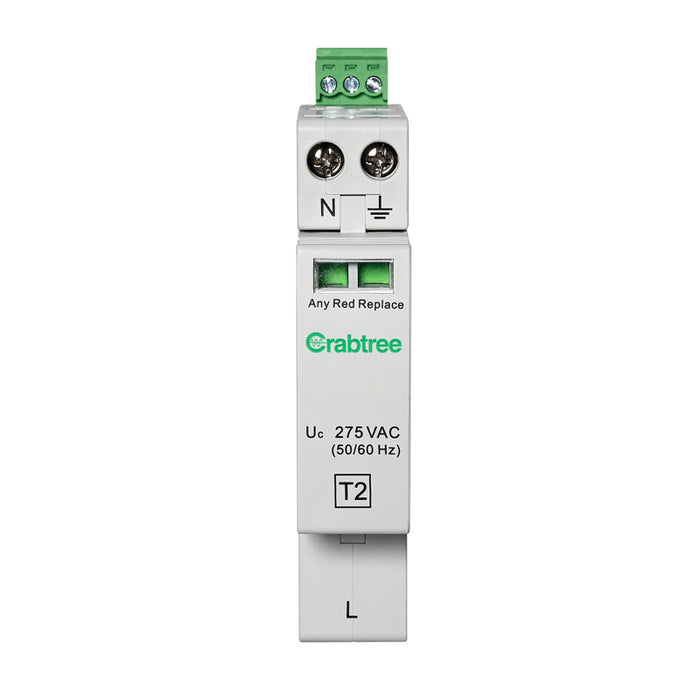

Crabtree SBT2SPD3W/1 Type 2 Miniature SPD Kit

Crabtree SBT2SPD3W/1 Type 2 Miniature SPD Kit

SKU SBT2SPD3W/1
£62.90 - £62.90
£62.90 inc VAT £52.42 exc VAT
£62.90 - £62.90
£62.90 inc VAT £52.42 exc VAT inc VAT £52.42 exc VAT

Standard Shipping

Estimated delivery time: Next working day

Description

Type 2 SPD kit, plug in. For Crabtree Starbreaker consumer units. DIN rail mounting, single module, including all connections. Status indication and volt free contact for remote monitoring.

Specification
  • System configuration TN-C-S Yes
  • System configuration TN-S Yes
  • System configuration TT Yes
  • Nominal discharge surge current (8/20) 20 kA
  • Short-circuit breaking capacity (Isccr) 25 kA
  • Max. continuous voltage AC 275 V
  • Max. discharge surge current (8/20) 40 kA
  • Mounting method DIN rail (top hat rail) 35 mm
  • Construction size 1 modular spacing
  • Voltage protection level 1.3 kV
  • Voltage protection level L-N 1.3 kV
  • Voltage protection level N-PE 1.3 kV
  • With remote signalling contact Yes
  • Integrated backup fuse No
  • Category type 2 Yes
  • Degree of protection (IP) IP20
  • Product Standard/s IEC EN 61643-11
  • Frequency 50 Hz
  • CE Conformity Yes
  • WEEE Symbol Yes
  • UKCA Conformity Yes

Datasheet

Product Dimensions

  • Height 85 mm
  • Width 18 mm
  • Depth 70 mm
