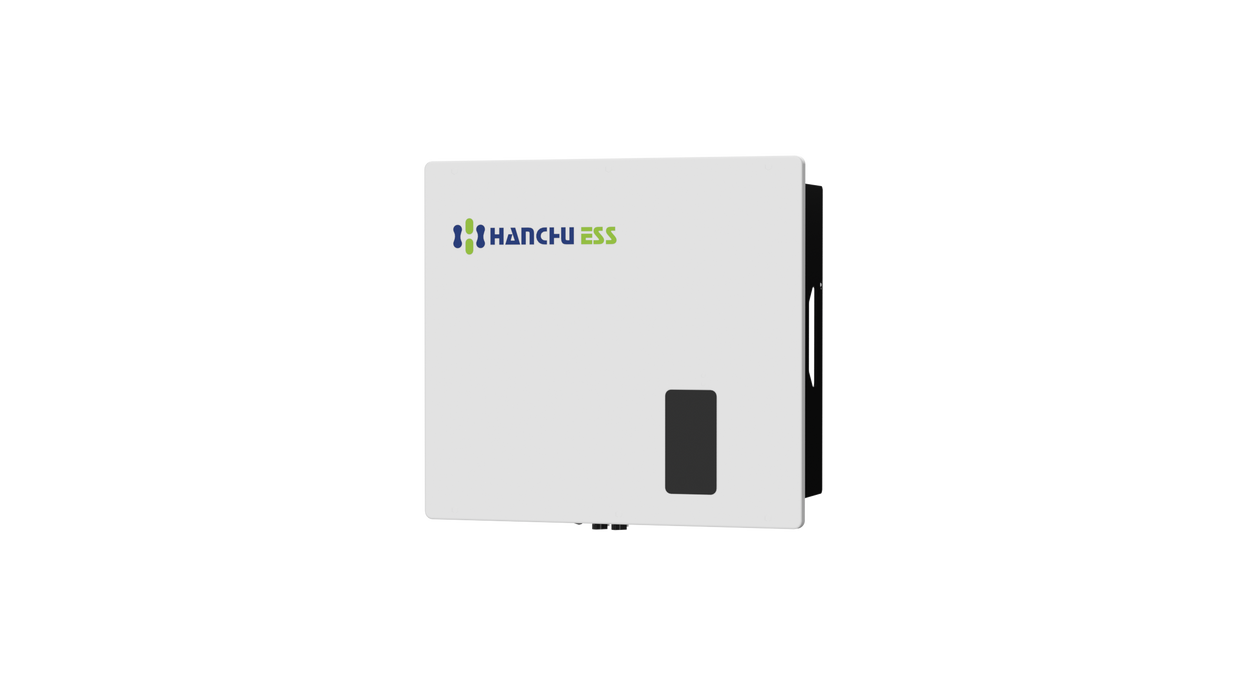

Hanchu HESS-HY-S-3.68K HANCHU ESS 3.6KW SINGLE PHASE HYBRID INVERTER

Hanchu HESS-HY-S-3.68K HANCHU ESS 3.6KW SINGLE PHASE HYBRID INVERTER

SKU HESS-HY-S-3.68K
£1,680.00 - £1,680.00
£1,680.00 inc VAT £1,400.00 exc VAT
£1,680.00 - £1,680.00
£1,680.00 inc VAT £1,400.00 exc VAT inc VAT £1,400.00 exc VAT

Estimated delivery time: Next working day

Description

Contact Us for Trade Pricing

The HESS-HY-S series is a single-phase inverter specifically designed for residential homes, supporting multi-unit parallel operation and perfectly compatible with the Hanchu LV series batteries. It includes multiple power options of 3/3.68/4/5/6kW, catering to various scales and application scenarios.

Please note Hanchu ESS is a professional use product only, and the system will need commissioning using an installer code. To register as an installer please visit the EO Academy.

Specification
  • Max. PV array power - 6180 Wp
  • Max. input voltage - 550 V
  • MPPT voltage range / rated input voltage - 40 V to 530 V / 380 V
  • Min. input voltage / start voltage - 40V / 50 V
  • No. of independent MPP trackers/ strings per
  • MPPT input - 2/1
  • Max. input current per MPP tracker -16A
  • Max. short-circuit current per MPP tracker -20A
  • Nominal battery voltage - 48 V/51.2V
  • Battery voltage range - 40 V to 60 V
  • Max. charging / discharging power - 5000 W /5000 W
  • Max. charging current / Max. discharging current -100 A / 100 A
  • Battery type -LiFePO4

Datasheet

Product Dimensions

  • 483 / 455 / 193.5 mm
