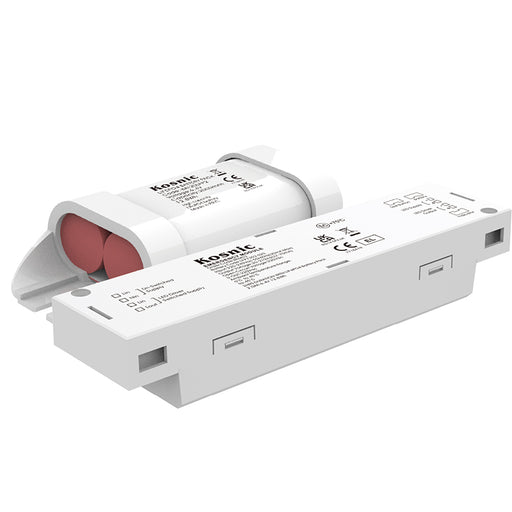

Kosnic BEM03 Push-in Batten EME Modular Emergency Module

SKU BEM03
Original price £33.05 - Original price £33.05
Original price
£33.05 inc VAT £27.54 exc VAT
£33.05 - £33.05
Current price £33.05 inc VAT £27.54 exc VAT inc VAT £27.54 exc VAT

Standard Shipping

Estimated delivery time: Next working day

Description

The Emergency Module for LED Batten Luminaires has been designed for easy installation in a range of Kosnic LED batten luminaires. KosnicLED batten datasheet will state if the luminaire is compatible with this model of emergency module.

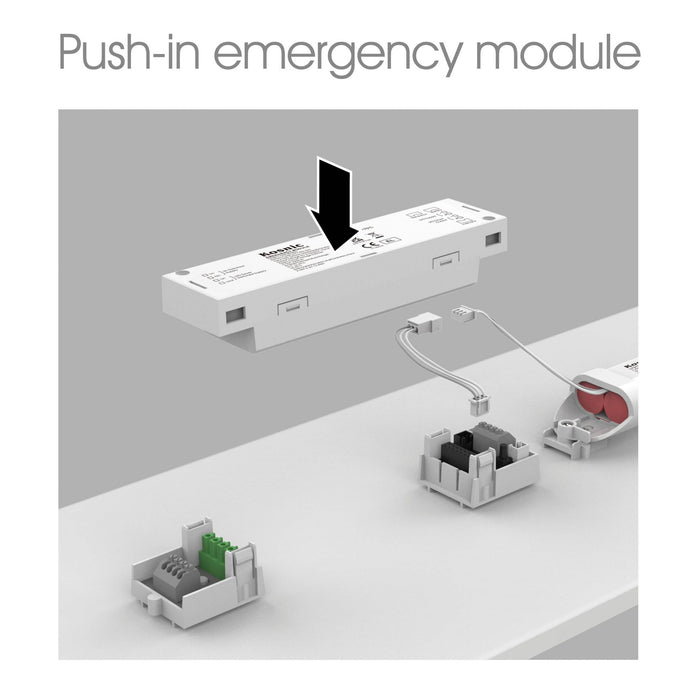

The emergency module is designed to be installed with the quick-fit tabs in the luminaire and includes a flat 4-pin connector for easy connection to the LED light source and status indicator in the luminaire.

Specification
  • Input Voltage - 220-240 Vac 50-60 Hz
  • Input Current (Max) (mA) - 20
  • Output Wattage (W) - 3
  • Output Voltage - 30-210 Vdc
  • Output Current (mA) - 7-70
  • Open Circuit Voltage - 220 Vdc
  • Protection - IP20, For built-in installation
  • Input to Output Protection - Double Installation
  • Battery - LiFePO4 BAT20LFP2
  • Battery Voltage - 6.4V
  • Capacity - 2000 mAh
  • Battery Charge Voltage - 7.2 Vdc
  • Weight - 183g

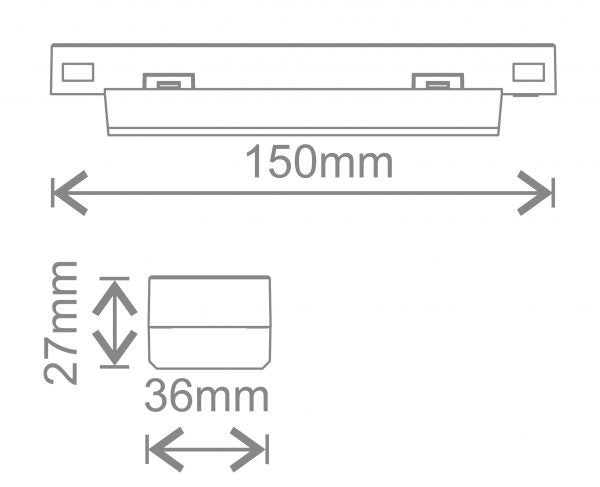

Product Dimensions

  • 150 x 36 x 27
