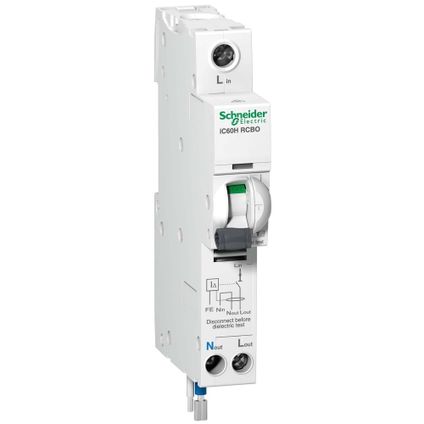

Schneider A9D31816 Type B 16A 30MA 10KA RCBO

Schneider A9D31816 Type B 16A 30MA 10KA RCBO

SKU A9D31816
£0
£58.80 - £58.80
£58.80 inc VAT £49.00 exc VAT
£58.80 - £58.80
£58.80 inc VAT £49.00 exc VAT inc VAT £49.00 exc VAT
Availability:
33 in stock, ready to be shipped
 More payment options

Estimated delivery time: Next working day

Description

This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+Ns circuit breaker with 1 protected pole, 16A In rated current and B tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA.

The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard.

Specification
  • Poles description - 1P + Ns
  • [In] rated current - 16 A at 50 °C
  • Earthing system - TN
  • Curve code - B
  • Earth-leakage sensitivity - 30 mA
  • Breaking capacity - 10000 A Icn at 230/240 V AC 50/60 Hz
  • Network type - AC
  • [Uimp] rated impulse withstand voltage - 4 kV
  • Surge current - 250A
  • Mechanical durability - 20000 cycles
  • Electrical durability - 5000 cycles
  • IP degree of protection - IP20
  • Warranty - 18 months

Datasheet

Product Dimensions

  • Height - 110 mm
  • Width - 18 mm
  • Depth - 77.5 mm
