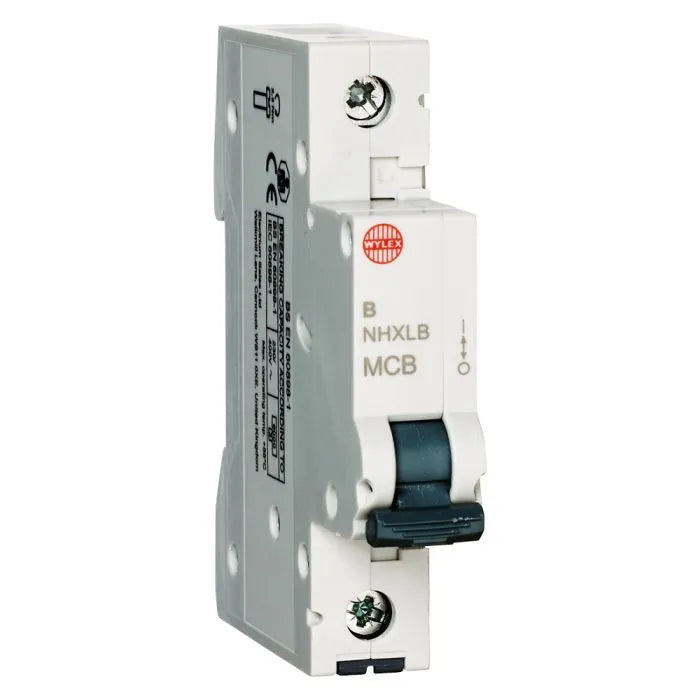

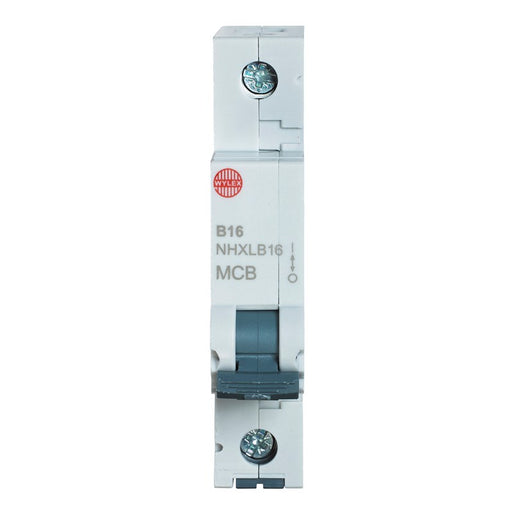

Wylex NHXLB16 16A 6KA Single Pole Miniature MCB Type B

Wylex NHXLB16 16A 6KA Single Pole Miniature MCB Type B

SKU NHXLB16
£0
£2.40 - £2.40
£2.40 inc VAT £2.00 exc VAT
£2.40 - £2.40
£2.40 inc VAT £2.00 exc VAT inc VAT £2.00 exc VAT
Availability:
499 in stock, ready to be shipped
 More payment options

Estimated delivery time: Next working day

Description

 Main Features:

  • Single pole MCB, 16A B curve
  • Energy limiting Class 3
  • Quick release DIN clip
  • No miss busbar connection
  • Fits NM & NMX consumer units
Specification
  • Release characteristic B
  • Number of poles (total) 1
  • Number of protected poles 1
  • Rated current 16 A
  • Rated voltage 230 V
  • Rated insulation voltage Ui 400 V
  • Rated impulse withstand voltage Uimp 4 kV
  • Voltage type AC
  • Frequency 50 Hz
  • Current limiting class 3
  • Flush-mounted installation No
  • Concurrently switching neutral conductor No
  • Over voltage category 3
  • Additional equipment possible No
  • Width in number of modular spacings 1
  • Built-in depth 73 mm
  • Degree of protection (IP) IP20
  • Ambient temperature during operating -5 - 40 °C
  • Connectable conductor cross section multi-wired .75-25 mm²
  • Product Standard/s BS EN 60898-1
  • CE Conformity Yes
  • WEEE Symbol Yes
  • UKCA Conformity Yes

Datasheet

Product Dimensions

  • Width - 20
  • Height - 90
  • Depth - 60
