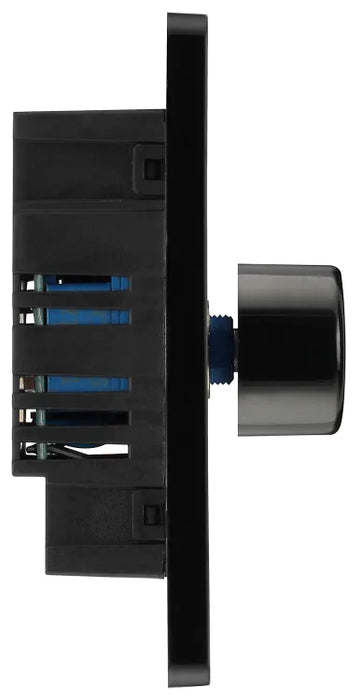

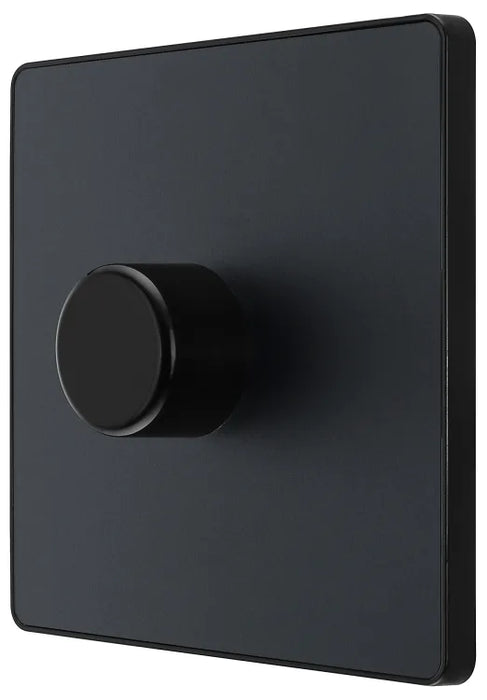

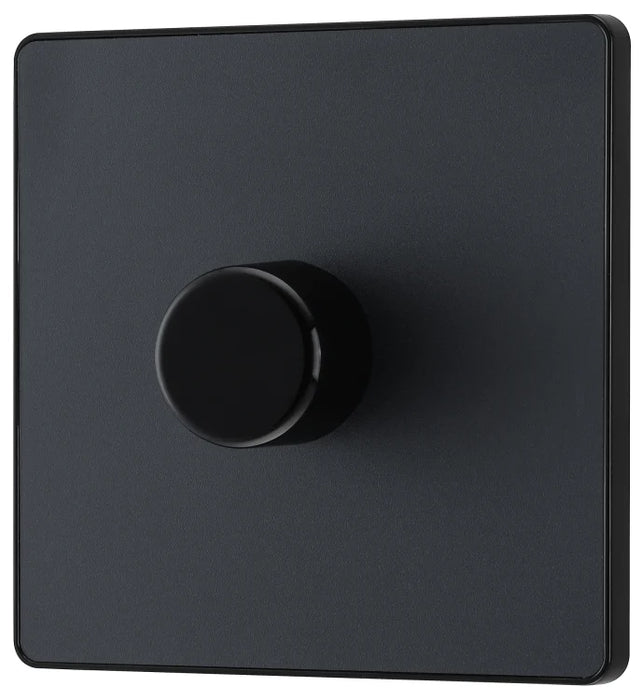

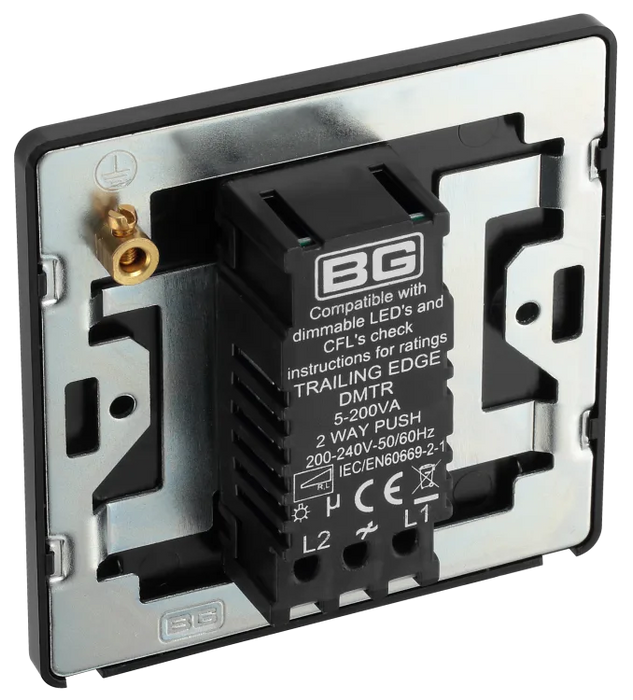

BG Evolve PCDMG81B-01 1G 2W Led Trailing Edge Single Dimmer Switch Matt Grey

BG Evolve PCDMG81B-01 1G 2W Led Trailing Edge Single Dimmer Switch Matt Grey

SKU PCDMG81B-01
£15.00 - £15.00
£15.00 inc VAT £12.50 exc VAT
£15.00 - £15.00
£15.00 inc VAT £12.50 exc VAT inc VAT £12.50 exc VAT

Estimated delivery time: Estimated delivery tomorrow*

Description

BG’s Evolve range of wiring accessories is available in a variety of colours and finishes to give you greater choice and flexibility when choosing electrical accessories to complement your decor.

The modern screwless front plate is simple to clip on and off, so you can install or leave the base in place when decorating and clip the colour plate in place once the job is complete.

Specification
  • Standard(s) - BS EN 60669-2-1
  • Voltage - 250V AC
  • Type - Trailing Edge
  • Terminal Capacity - 3 x 1mm² 2 x 1.5mm² & 1 x 2.5mm²
  • RoHS Directive - Yes
  • WEEE Directive - Yes
  • Mounting Box Depth (Min) - 25mm
  • Dimmable LED - 5-100W
  • Tungsten/Incandescent - 5-200W
  • Halogen - 20-200W
  • Dimmable Compact Fluorescent (CFL) - 5-100W

Datasheet

Product Dimensions

  • Height - 86mm
  • Width - 86mm
  • Depth - 44mm
