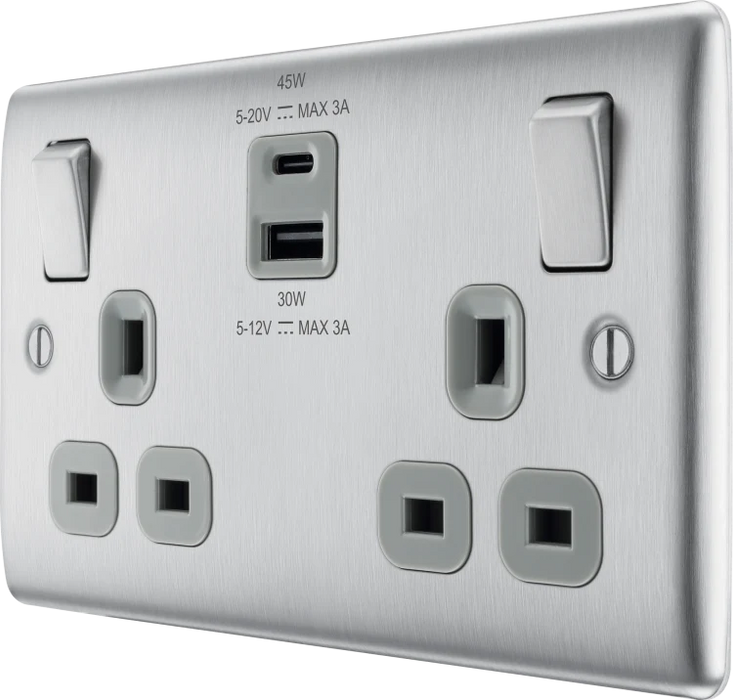

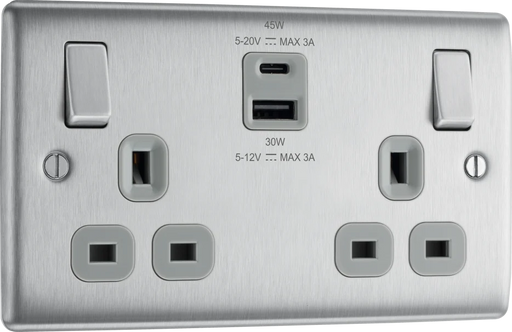

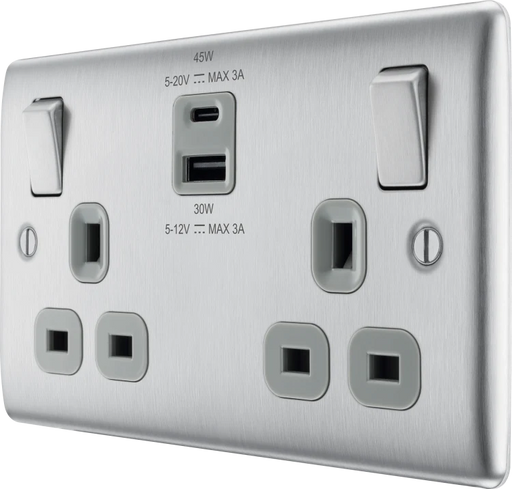

BG NBS22UAC45G Double Switched Single Pole, with USB A + C (45W)

SKU NBS22UAC45G
Original price £28.75 - Original price £28.75
Original price
£28.75 inc VAT £23.96 exc VAT
£28.75 - £28.75
Current price £28.75 inc VAT £23.96 exc VAT inc VAT £23.96 exc VAT

Standard Shipping

Estimated delivery time: Next working day

Description

 Main Features:

  • 13A Power Sockets with integrated ‘fast charge’ USB-A & USB-C
    ports.
  • Delivers 50% charge to mobile phones in just 30 minutes.
  • Charge up 70% faster than standard 5V charging.
  • Supports PD and QC charging protocols and outputs the best
    voltage & current for optimum charging.
  • Ideal for charging larger devices such as tablets and laptops
    quickly and efficiently.
  • Smart Charging - Intelligently adjusts the voltage to give devices
    the power they need, when they need it, without overcharging.
  • Compatible with all smartphone brands including Apple,
    Samsung, Google and Huawei.
  • Sleek and slim metal profile with softly rounded edges.
  • Moisture control gasket prevents tarnishing from new plaster.

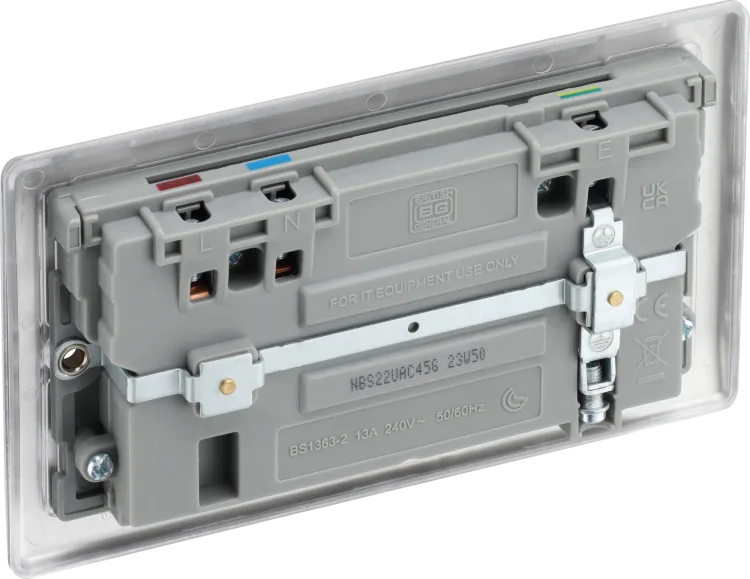

  • Angled, colour coded terminals with captive screws.
  • Twin earth for high integrity circuits.
  • Minimum mounting box depth: 25m
Specification
  • Standard(s) - BS 1363-2:2016+A1:2018, BS EN 62368-1:2014, EN55032
  • Rating -13 Amp 240V ~
  • Contact Gap -3.0mm minimum
  • Switch Type -Single Pole
  • Terminal Capacity - L & N -3 x 2.5mm², 3 x 4.0mm² & 2 x 6.0mm²
  • RoHS Directive - Yes
  • WEEE Directive - Yes
  • Mounting Box Depth (Min) - 25mm
  • Fixing Centres - 120.6mm
Product Dimensions

Unpacked Width (mm) - 146

Unpacked Height (mm) - 86
