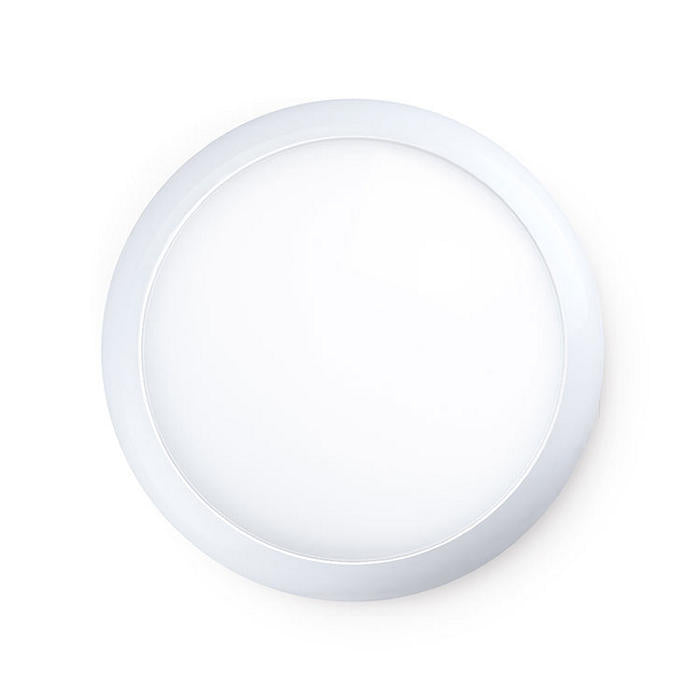

JCC JC070075 RadiaLED Rapid 12W 4000K IP65 LED Bulkhead

SKU JC070075
Original price £20.44 - Original price £20.44
Original price
£20.44 inc VAT £17.03 exc VAT
£20.44 - £20.44
Current price £20.44 inc VAT £17.03 exc VAT inc VAT £17.03 exc VAT
Availability:
18 in stock, ready to be shipped

Estimated delivery time: Next working day

Description

Main Features:

  • 2.5x faster to install than traditional LED bulkheads
  • Detachable terminal, for simple wiring connection
  • Multiple cable entry, central and offset rear entry points 20mm conduit entry, on top, bottom, sides and rim
  • Clip-in tool-less LED gear tray design
  • Smooth, even light distribution
  • IK10, maximum impact rating
  • IP65 protection against dust and moisture
  • Emergency, microwave and dimmable options
  • Complete with white rim as standard
Specification
  • Voltage Rating 220-240
  • Primary Running Current(Amp) 0.16
  • Operating Frequency Hz 50/60
  • Secondary running current(mA) 300
  • Constant Current or Constant Voltage CC
  • Luminaire Circuit Wattage 12
  • Class II
  • Output Voltage Max/Range (VDC) 25-40
  • EMC Compliant (EN55015) Yes
  • Power Factor Correction 0.5
  • Input Electrical Connections Live, Neutral, with earth provision
  • Dimmable No
  • Actual Lumen Output 1250
  • Lumens Per Circuit Watt 104
  • Standard Deviation Colour Matching - SDCM ≤ 6
  • Color Rendering Index 80-89
  • CRI: Ra 84
  • Correlated Color Temperature 4000
  • Beam Angle ° 116
  • LOR (Light Output Ratio) % 100
  • Photometry Available Yes

Datasheet

Product Dimensions

  • Height (mm) 98.3
  • Diameter (mm) 340
