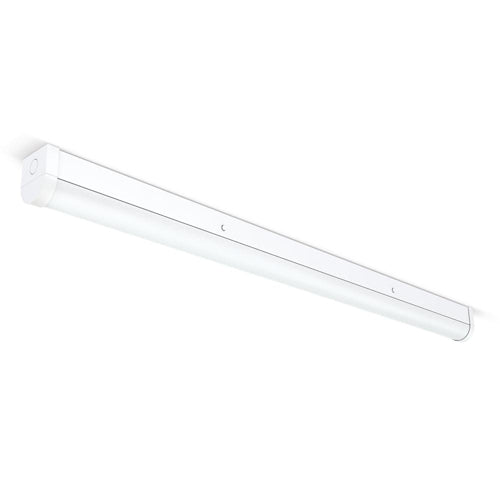

JCC JC71742 4FT Twin LED Batten

JCC JC71742 4FT Twin LED Batten

SKU JC71742
£29.04 - £29.04
£29.04 inc VAT £24.20 exc VAT
£29.04 - £29.04
£29.04 inc VAT £24.20 exc VAT inc VAT £24.20 exc VAT
Availability:
Only 2 left!

Estimated delivery time: Next working day

Description

 Main Features:

  • Intelligent press release buttons for simple installation
  • Ultra efficient, up to 120 lumens per circuit Watt
  • Suitable for temperatures -10°C to 50°C
  • Press fit terminals, loop in loop out
  • Rear and end conduit entry points
  • Suspended LED tray for easy installation
Specification
  • Voltage Rating 220-240
  • Primary Running Current(Amp) 0.16-2.1
  • Operating Frequency Hz 50/60Hz
  • Secondary running current(mA) 900
  • Constant Current or Constant Voltage CC
  • Luminaire Circuit Wattage 40
  • Class I
  • EMC Compliant (EN55015) Yes
  • Power Factor Correction 0.9
  • Input Electrical Connections Live, Earth & Neutral
  • Dimmable No
  • Actual Lumen Output 4800
  • Lumens Per Circuit Watt 120
  • Color Rendering Index 80-89
  • CRI: Ra 80
  • Correlated Color Temperature 4000K
  • Beam Angle ° 120
  • LOR (Light Output Ratio) % 100
    Datasheet
Product Dimensions

  • Length (mm) 1220
    Width (mm) 70
    Height (mm) 76.5
