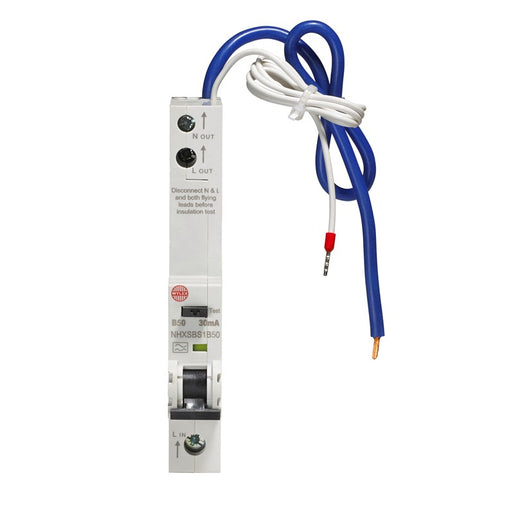

Wylex NHXSBS1B50 50A 30mA SPN B Curve 6kA Type A Uni-Directional RCBO

Wylex NHXSBS1B50 50A 30mA SPN B Curve 6kA Type A Uni-Directional RCBO

SKU NHXSBS1B50
£0
£21.30 - £21.30
£21.30 inc VAT £17.75 exc VAT
£21.30 - £21.30
£21.30 inc VAT £17.75 exc VAT inc VAT £17.75 exc VAT
Availability:
20 in stock, ready to be shipped
 More payment options

Estimated delivery time: Next working day

Specification
  • Number of poles (total) 2
  • Number of protected poles 1
  • Rated voltage 230 V
  • Rated insulation voltage Ui 400 V
  • Rated impulse withstand voltage Uimp 4 kV
  • Rated current 50 A
  • Rated fault current 0.03 A
  • Leakage current type A
  • Current limiting class 3
  • Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA
  • Disconnection characteristic Undelayed
  • Voltage type AC
  • Frequency 50 Hz
  • Release characteristic B
  • Concurrently switching neutral conductor No
  • With interlocking device No
  • Over voltage category 3
  • Ambient temperature during operating -5 - 40 °C
  • Width in number of modular spacings 1
  • Built-in depth 74 mm
  • Flush-mounted installation No
  • Anti-nuisance tripping version No
  • Degree of protection (IP) IP20
  • Connectable conductor cross section solid-core .75-16 mm²
  • Connectable conductor cross section multi-wired .75-16 mm²
    Product Standard/s IEC 61009-1
    CE Conformity Yes
    WEEE Symbol Yes
